Kerberos single sign-on (SPNEGO)

With Kerberos single sign-on, domain-joined Windows clients — Outlook in particular — authenticate to grommunio transparently, without a password prompt. Gromox's HTTP service accepts Kerberos tickets via SPNEGO ("Negotiate"), validated against an Active Directory KDC using a dedicated service account, its Service Principal Names (SPNs) and an exported keytab.

Example values

The walkthrough uses lab values — realm TESTDOM.LOCAL (DNS domain testdom.local), grommunio host gromm1, domain controller dc1, and the service account gromox. Replace them with your own throughout.

Before you start

• An Active Directory domain with a reachable domain controller (the KDC).
• A grommunio server whose HTTP service will accept Kerberos tickets for an HTTP/… SPN.
• Administrative access to the DC (to create the account, register SPNs and export a keytab).

1. Synchronize time

Kerberos does not tolerate a clock skew of more than 5 minutes. Synchronize the grommunio server and the domain controller against the same time source (e.g. with chronyd) before anything else.

2. Create the service account in Active Directory

On the domain controller, create a user account that represents the HTTP service (here: gromox). On its Account tab, set the user logon name to the service's SPN (HTTP/gromm1.testdom.local) in the domain realm, and enable Password never expires.

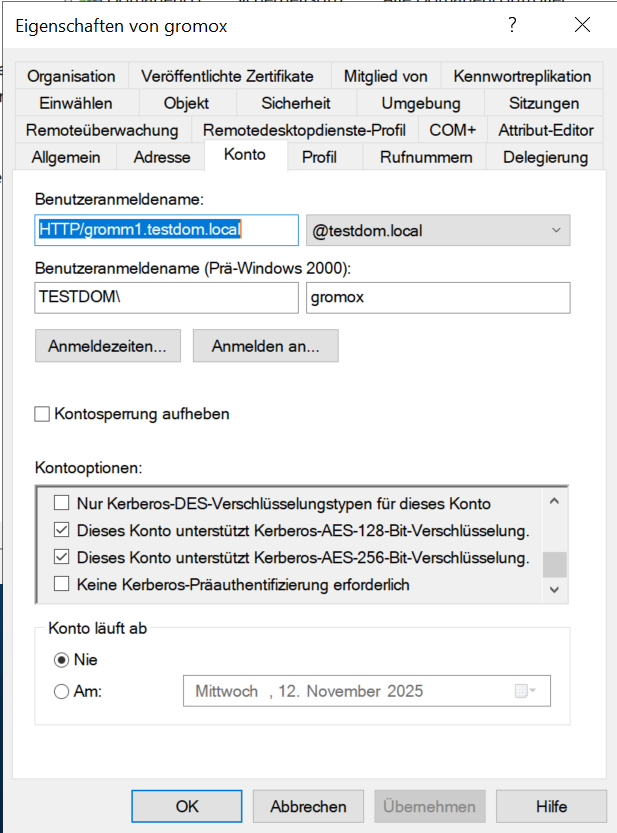

In Account options, enable both "This account supports Kerberos AES 128-bit encryption" and "…AES 256-bit encryption".

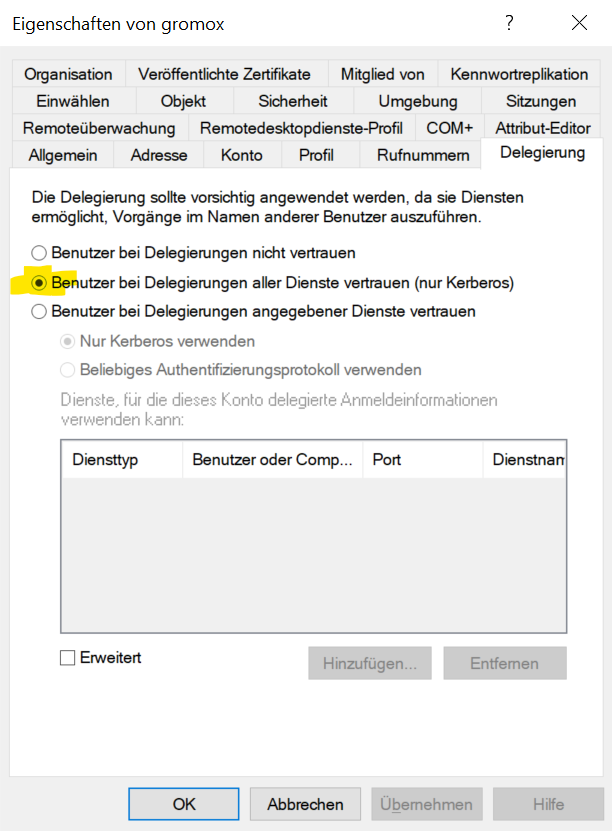

On the Delegation tab, select "Trust this user for delegation to any service (Kerberos only)".

3. Register the SPNs

Still on the domain controller, register the service principal names against the account. The HTTP/<host> and HTTP/autodiscover.<domain> SPNs are the essential pieces:

setspn -S HTTP/gromm1.testdom.local@TESTDOM.LOCAL gromox
setspn -S HTTP/autodiscover.testdom.local gromox

Verify (and, if needed, remove) the registered SPNs:

setspn -L gromox            # list the account's SPNs
setspn -D <SPN> gromox      # delete an SPN

4. Export the keytab

Export a Kerberos keytab that maps the SPN to the service account, using AES256-SHA1:

ktpass.exe -princ HTTP/gromm1.testdom.local@TESTDOM.LOCAL ^
  -mapUser gromox@TESTDOM.LOCAL -pass <PASSWORD> ^
  -ptype KRB5_NT_PRINCIPAL -crypto AES256-SHA1 -out C:\Temp\krb5.keytab

Pin the key version number

You can fix the key version number with -kvno (e.g. -kvno 51). It must match the KVNO the keytab reports on the grommunio server (see Verification).

5. Copy the keytab to the grommunio server

Transfer krb5.keytab to the grommunio server as /etc/krb5.keytab (e.g. with WinSCP or scp). Give it restrictive permissions — it contains the service account's key material:

chown root:root /etc/krb5.keytab
chmod 600 /etc/krb5.keytab

6. Configure Kerberos on the server

Edit /etc/krb5.conf:

[libdefaults]
    default_realm = TESTDOM.LOCAL
    default_tgs_enctypes = aes256-sha1 aes128-sha1
    default_tkt_enctypes = aes256-sha1 aes128-sha1

[realms]
    TESTDOM.LOCAL = {
        kdc = dc1.TESTDOM.LOCAL
        admin_server = dc1.TESTDOM.LOCAL
        default_domain = TESTDOM.LOCAL
    }

[domain_realm]
    .testdom.local = TESTDOM.LOCAL
    testdom = TESTDOM.LOCAL

7. Enable SPNEGO in Gromox

Edit /etc/gromox/http.cfg and add:

http_auth_spnego=yes

## GSS provider — the built-in one is the default:
#gss_program=internal-gss

## …alternatively, use the Squid GSS helper:
gss_program=/usr/lib/squid/negotiate_kerberos_auth -s GSS_C_NO_NAME

## verbose logging while testing (remove afterwards):
http_debug=2

Restart the HTTP service so the changes take effect:

systemctl restart gromox-http

8. Test from a domain-joined client

1. Log in to a domain-joined Windows PC.
2. Create a new Outlook profile.
3. Outlook may prompt for credentials once on first run — enter them but do not save the password.
4. On subsequent starts, Outlook must not prompt for a password.

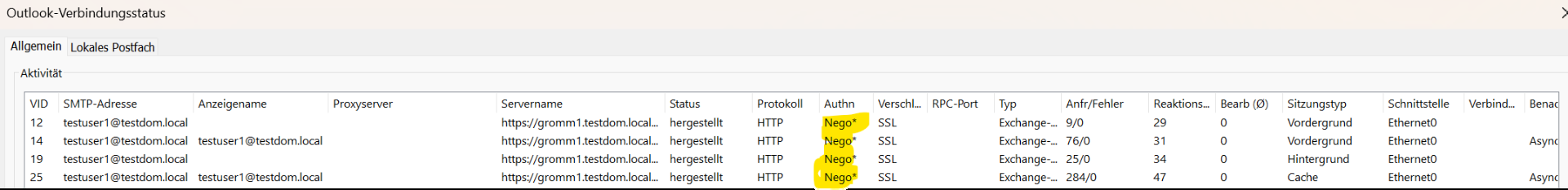

5. Open the Outlook Connection Status (hold Ctrl and click the Outlook tray icon → Connection Status). The Authn column should read Nego*, confirming Kerberos/Negotiate.

Verification & troubleshooting

Inspect the keytab and its key version number — the KVNO must match the grommunio server logs:

klist -k /etc/krb5.keytab          # list principals + KVNO
klist -e -k /etc/krb5.keytab       # include encryption types
# e.g. 51 HTTP/[email protected] (aes256-cts-hmac-sha1-96)

Exercise the Squid GSS helper directly:

# Print a Negotiate token for the local host
/usr/lib/squid/negotiate_kerberos_auth_test $(hostname -f)

# Validate a token against the service principal; paste the token when prompted
/usr/lib/squid/negotiate_kerberos_auth -s HTTP/[email protected]
# → OK token=… [email protected] group=…

Get a verbose Kerberos trace for a test login:

KRB5_TRACE=/dev/stdout kinit -V [email protected]

On a Windows client, you can map an additional realm to a KDC if required:

ksetup /addkdc TEST.AT dc1.testdom.local

Notes

• The setup works fine with multiple domain controllers — just make sure DNS resolves the KDC(s) correctly.
• The two SPNs — HTTP/<host> and HTTP/autodiscover.<domain> — are the critical piece; most failures come down to a missing or mistyped SPN, a clock skew over 5 minutes, or a KVNO/enctype mismatch between the keytab and the DC.
• See also the authentication overview for how Gromox fits Kerberos alongside its other authentication backends.
