Microsoft Exchange

PFF (cf. summary from the Forensics Wiki) is a format exportable from Outlook and Exchange. Outlook makes use of this format for different scenarios, and calls them different names (.pst, .ost), but it is just one file type.

• .pst files can be generated with Outlook interactively
• .ost files can be taken from C:Users...
• .pst files can be also generated from an Exchange Server's PowerShell in a mostly unattended fashion

Outlook interactive export

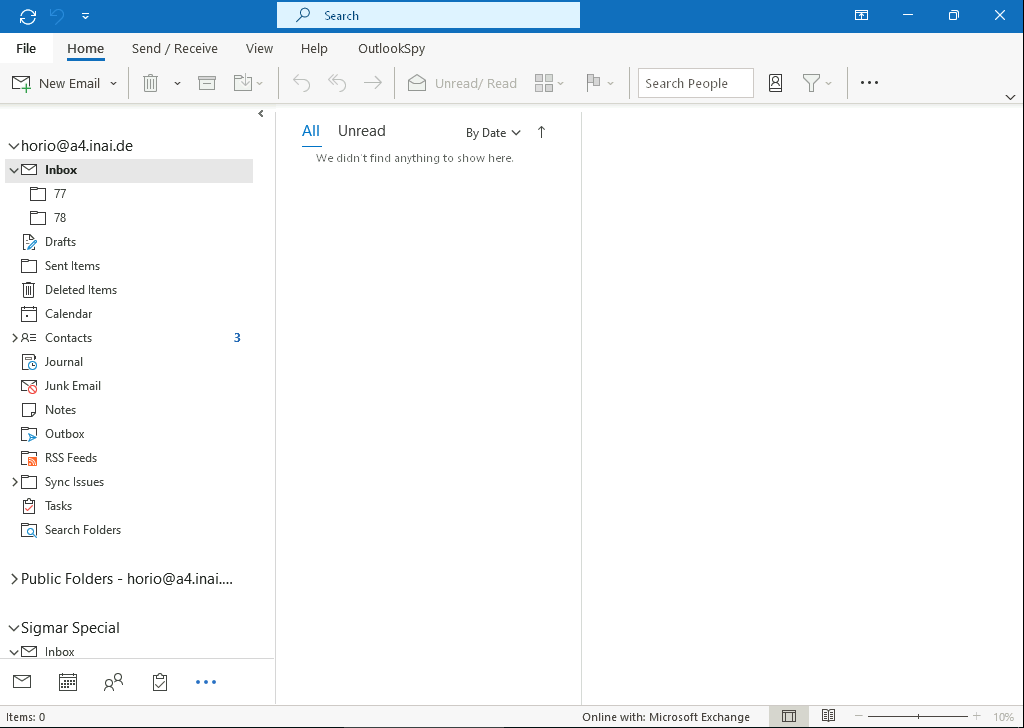

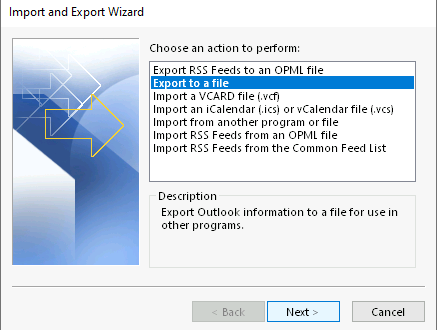

Once the Outlook main window is open, go to “File”, “Open & Export”, “Import/Export”:

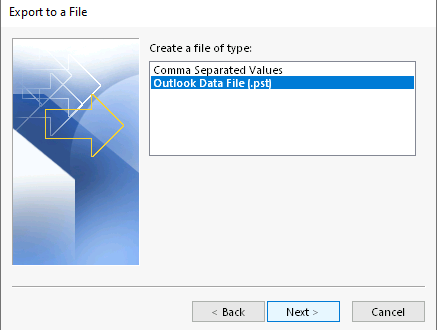

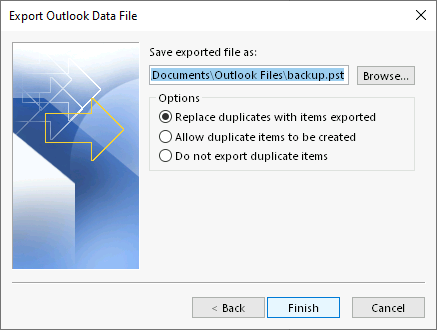

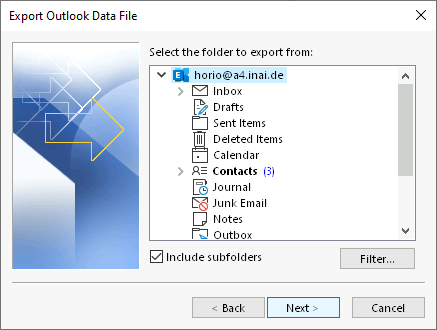

Then follow the usual dialog chain.

Caution

Before attempting to copy PFF files, ensure the file(s) is/are not open anywhere anymore. Even after closing Outlook, Outlook may still execute in the background for some seconds, in particular when the MAPI profile used Exchange Cached Mode. Various failure modes trying to access active PFF files have been observed, such as:

1. Under the cmd.exe shell, the command type stillactive.pst >new.pst produces new.pst with just 512 bytes before aborting with the message The process cannot access the file because another process has locked a portion of the file.

2. Under the cmd.exe shell, the command scp stillactive.pst [email protected]: can produce the file on the target, but all bytes are ASCII NUL bytes. (So observed with Powershell-OpenSSH v8.x; fixed in 9.x). A log message Domain error is output by scp.

3. PFF files contain a CRC-32 checksum, which can readily change while the file is in use. Attempts to read the file from underneath Windows (e.g. at the storage or hardware level), or attempting to use a PFF file that was not cleanly closed may result in gromox-pff2mt rejecting the input.

gromox-pff2mt import

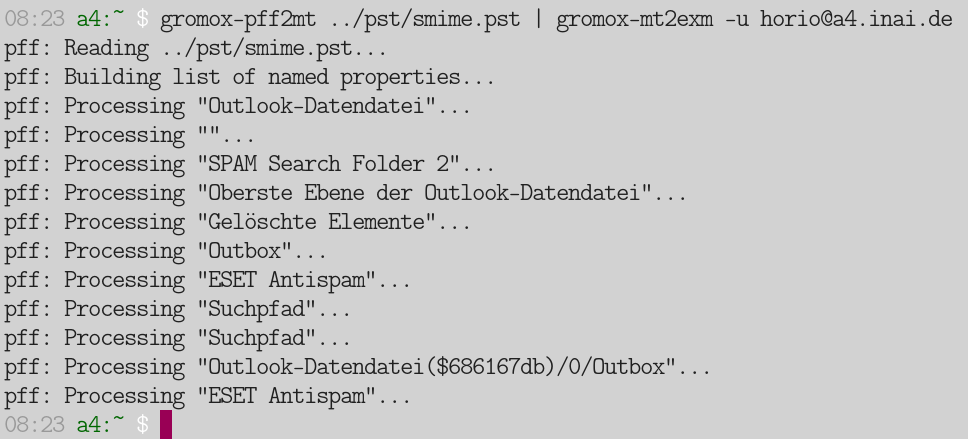

On the grommunio system, PFF files can be imported on the command-line with gromox-pff2mt and gromox-mt2exm. These are two commands meant to be chained together by way of a pipe; tend to the linked manual pages to read about the invocation syntax.

Automated bulk migration with exchange2grommunio.ps1

For migrating many mailboxes, grommunio ships a PowerShell script — exchange2grommunio.ps1 — that automates the whole flow end to end. For each Exchange mailbox it exports a .pst, makes it available to the grommunio server over a shared folder, and imports it there via SSH — optionally creating the grommunio mailboxes as well.

How it works

For every selected mailbox the script:

1. Exports the mailbox to a .pst with New-MailboxExportRequest onto a shared folder that the Exchange subsystem can write to.
2. Reaches the grommunio server over SSH (using plink.exe), where the same folder is mounted (mount.cifs), and imports the .pst.
3. Optionally deletes the .pst afterwards to save space, and records the result.

Successful imports are written to exchange2grommunio.done and failures to exchange2grommunio.failed, so a run can be resumed or retried.

Prerequisites

• grommunio is attached to the same LDAP/AD as Exchange, so users resolve on both sides (test LDAP before importing).
• The script is run from an elevated Exchange Management Shell (Windows Server 2012 R2 or newer, PowerShell 2.0+; 3.0+ is recommended so Linux command output is captured in the logs).
• plink.exe (from PuTTY) sits in the same directory as the script; optionally pageant.exe for SSH public-key authentication.
• A shared folder (UNC path) that the Exchange subsystem can write to and that the grommunio server can mount (cifs-utils installed), with enough space for the .pst files.
• SSH access to the grommunio server, with its host key already accepted by plink.exe.

Key settings

All settings live at the top of the script (or a separate configuration file). The most important ones:

Variable	Purpose
$GrommunioServer	FQDN of the target grommunio server
$WinSharedFolder / $LinuxSharedFolder	The shared .pst folder, as seen from Windows (UNC) and from Linux (mount point)
$LinuxUser	Shell user on the grommunio side (e.g. root)
$LinuxUserPWD / $LinuxUserSSHKey / $UsePageant	SSH auth: password, private key (.ppk), or key via Pageant
$WindowsUser / $WindowsPassword	Windows account used to mount the share on Linux
$AutoMount	Mount the Windows share on the grommunio server automatically
$DeletePST	Delete each .pst after a successful import
$MailboxLanguage	Language for newly created mailboxes (see /usr/share/grommunio-admin-api/res/storelangs.json)
$Organization	-o <id> when created mailboxes have aliases across domains
$MigrationPriority	New-MailboxExportRequest priority (Normal is usually faster than High)
$LogFile	Summary log; per-mailbox export/import logs go to <share>\logs\

Selecting which mailboxes to migrate

• Allow-list: set $ImportMboxes (an array of addresses) or, if it is empty, the script reads addresses from the exchange2grommunio.import file on the share. Leaving both empty migrates all mailboxes.
• Deny-list: $IgnoreMboxes / the exchange2grommunio.ignore file exclude mailboxes (always honored).

Generate the import list from grommunio

You can produce the list of existing grommunio mailboxes directly:

gromox-mbop foreach.mb echo-username > /mnt/pst/exchange2grommunio.import

To re-run only the failures, copy the failed list over the import list (cp exchange2grommunio.failed exchange2grommunio.import).

Creating mailboxes during migration

Two switches decide whether the script also provisions the grommunio mailboxes (this requires a working LDAP configuration):

$CreateGrommunioMailbox	$OnlyCreateGrommunioMailbox	Behaviour
$false	$false	Migrate into existing mailboxes, one by one
$true	$false	Create then migrate each mailbox in turn
$true	$true	Two-pass: create all mailboxes first, then run again with both set to $false to migrate the data

The two-pass mode is recommended for large migrations: users can start working in grommunio immediately with empty mailboxes (new mail arrives normally) while the historical data is imported in the background.

Running it

Launch the script from the elevated Exchange Management Shell:

.\exchange2grommunio.ps1

• For an unattended run, set $WaitAfterImport = $false and $StopOnError = $false so it does not block waiting for the administrator on an error.
• To stop gracefully, create the stop-marker file (exchange2grommunio.STOP) on the share — the script finishes the current mailbox and then exits.

The underlying import on the grommunio side uses the same tooling as the manual path (gromox-pff2mt → gromox-mt2exm), so the import notes above apply equally.
